Tablet type Dynamic Face Recognition Reader
I, Face Recognition Camera Introduction
1-World’s Leading Face Recognition Capability
Tablet type Binocular Face Recognition Access Control Terminal adopts industrial embedded SOC with stable performance. The independently developed AI CNN neural network face recognition algorithm has the world’s leading face recognition capability.
2- Powerful Hardware Platform
1.2TFLOPS, can quickly search and identify targets in the local face library when working.
3- The following functions are optional
(1) ID/IC card identification
(2) QR code identification
(3) Wifi communication
(4) Touch screen operation
(5) Temperature measurement function
(6) Increase the total registered capacity
4- Face Recognition Reader No need special coordination
Face Recognition Reader Self-developed AI CNN neural network face recognition algorithm doesn’t need special coordination for dynamic recognition.
5- Support 1: N face recognition, 1:1 face comparison
***N equals the total capacity of both registered face and card.
***The system supports the comparison between person and ID documents, such as ID cards, residence permits in Hong Kong, Macao and Taiwan, etc.
6- Various installation and use methods

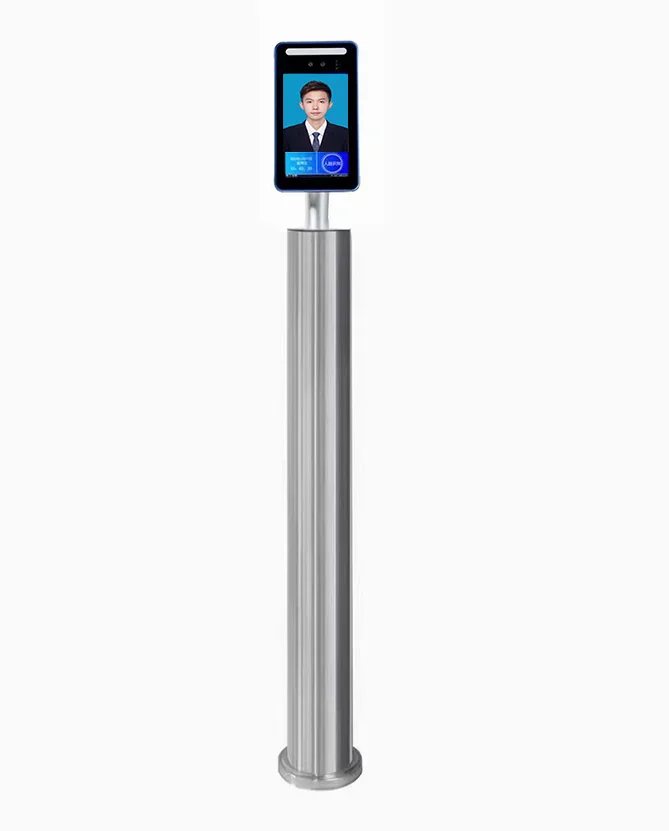

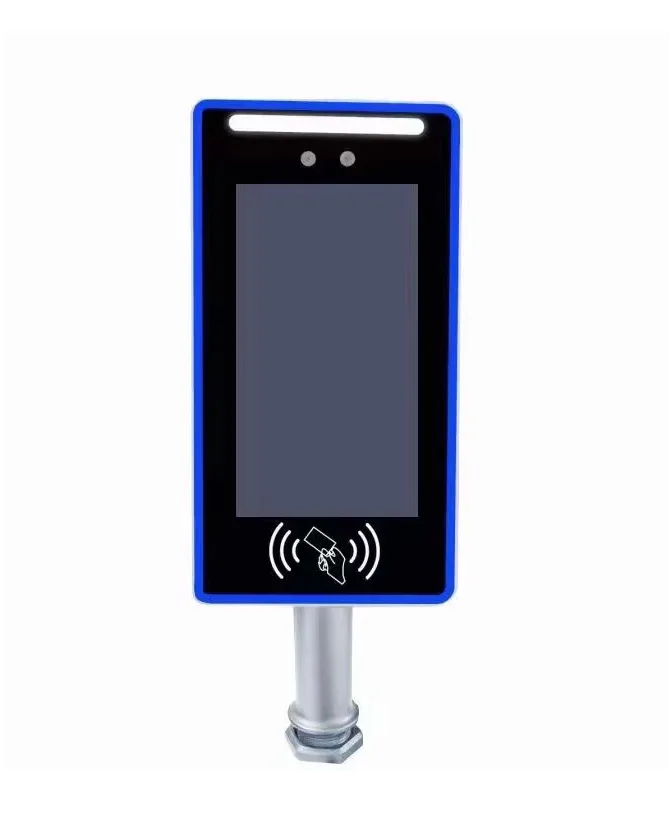

You can choose wall-mounted installation, table bracket type, stainless steel cylinder type, Pillar base with LED lights type, or install it on the turnstile gate as an access control system.
7- Material
It’s made of all aluminum alloy + tempered glass. The material is waterproof, moisture-proof, dustproof, high temperature resistance, fire resistance, wear resistance, corrosion resistance, oxidation resistance, you can install it outdoor.
8- High performance embedded processor
Set image acquisition, face detection, face tracking and face comparison in one, the device can operate smoothly without delay.
9- Use offline
By default, no need computer and cloud, support offline face recognition, and client can directly input face information on the device.
10- Simple & Easy Registration
***Support direct using the RFID card to register and delete the face.
***Namely, only need to swipe the card, the face information will be successfully registered into the face recognition terminal, or deleted from the device. The operation is very fast, simple and easy!
***Here share with you a related demo video FYR. Pls check the below link from Youtube.
*Tablet type https://www.youtube.com/watch?v=6de-at0a8ow
*Cylinder type https://www.youtube.com/shorts/WY76O0JcfUc
11- Infrared Light and Visible Light, Dual Light Hybrid Recognition
This product uses full-HD (high-definition) full-color camera, and full-HD infrared camera, dual-light composite cameras. LED light is super sensitive, can also quickly recognize faces at night.
LED fill + infrared binocular camera, with automatic exposure, automatic white balance, automatic dark compensation, can easily cope with the normal light, backlight, strong light, low light, dark light, no light environment.
The face recognition Reader can still recognize quickly and efficiently the person with wearing glasses, hats, masks and heavy makeup. And it can also identify easily twins.
12- Binocular wide dynamic camera
It supports live detection function, can effectively prevent mobile phone photos, mobile phone videos,
paper color pictures, black and white pictures, high-definition photos misidentification.
13- Adjustable
You can also adjust the exposure (shutter), gain, contrast, saturation, brightness, etc.
14- Management way
***Management type
The equipment supports white and black name list, temporary list control and alarm output.
***Batch management
The system supports centralized management. Users can efficiently manage equipment, and set personnel management and access control attendance management
15- Large storage capacity
*** Total registered capacity (face + card): 20,000 (support expansion, 50,000 optional)
*** Record storage capacity: 100,000 identification records
16- Support access control, Weigen output.
17- Support LAN, cloud protocol secondary development docking.
18- Multiple language output
English, French, Spanish, Italian, Japanese, Korean, Chinese, Traditional Chinese optional.
II, Face Recognition Reader Functions & Advantages
1- Convenient
Customers can integrate the face recognition device into the turnstile gate. Then, register the face information quickly. Lastly, the user can pass by face recognition, which help solve the problem that they can’t open the door since the users forget to bring the work cards, or the cards are stolen.
2- Accurate, prevent employees from clocking in instead
The face recognition accuracy rate is as high as 99.8%, effectively preventing employees from cheating such as punching in instead.
3- Safe and Reliable
It supports face and real name authentication, and prevent external personnel from entering and leaving specific places at will, so it helps improve security.
It can combine a number of combination capabilities such as ID card recognition, face comparison, and live detection, and connect authoritative data sources to ensure that the user is a “real person” and “myself”. Lastly, quickly complete identity verification.
Many financial services, logistics, shipping and other industries use it to effectively control business risks and resist cheating.
4- Fast and efficient
Face recognition time is less than 300ms, so it can fast and efficiently recognize the faces, and pedestrians do not need to stop deliberately.
5- Good for health
The use of binocular recognition avoids the risk of cross-contact caused by fingerprint recognition or swiping card.
6- Attendance
Customers can view the access time, statistics late, early leave and other information. And can also check the attendance of a specified period. What’s more, you can export attendance record report by U disk or TCP/IP.
7- Save costs
The device can help reduce security personnel quantity and workload, saving labor costs
8- Intelligent management
The high-tech intelligent management equipment is made of aluminum alloy + tempered glass, with a beautiful and elegant appearance, and can help efficiently manage the office area. At the same time, enhance the company image.
Based on above strength, many customers use it in office buildings with attendance, communities, scenic spots, public service places, construction sites, government units and other places required to use access control devices.
III, Face Recognition Reader Specification Parameter
| Hardware Information | Material | All aluminum alloy + tempered glass |
| Body Size | Small 7″：228*112*53(mm) Large 7″：246*128*24(mm) 8″：360*132(mm) |
|
| Installation Way | Wall mount installation, desk bracket, pillar stand,
turnstile gate |
|
| Bracket Holes Size | Pls punch a Φ34 or Φ35 hole if install on Turnstile. | |
| Operating System | Linux embedded system | |
| CPU | V11109 2core 1.5GHz | |
| Storage | Memory 1GB, Data Storage 8GB | |
| Display | 7″ or 8″ HD IPS LCD screen optional Display Resolution: 1024*600 Image Resolution: 1920(H)*1080(V) |
|
| Touch Screen | Support (optional) | |
| Camera | 300W binocular live camera | |
| Wide Dynamic | Support | |
| Supplementary Light | Three-color supplementary light + Infrared supplementary light | |
| WIFI | Support (optional) | |
| Loudspeaker | 1 speaker | |
| Watchdog | Support Hardware Watchdog | |
| Recognition Function | Recognition Distance | Face recognition distance: 0.5-2M Reading card distance: 2-6CM Temperature measurement distance: 0.3-1.0M |
| Recognition Time | less than 300ms | |
| Recognition Accuracy | Face recognition accuracy: 99.8% Temperature measurement deviation: ±0.3℃ |
|
| IC/ID Card Identification | Support USB card module/serial card module (optional) | |
| QR Barcode Recognition | Support scanning QR, Barcode recognition (optional) | |
| Id Card Identification | support comparison between person and ID documents (support the use of ZK USB universal protocol ID card reader IDM30/40, ChinaVision USB reader CVR-100M) | |
| Temperature Measurement | Support (optional) | |
| Registered Total Capacity
(Face + card) |
1：N，N<=20000（50000 optional） | |
| Record Storage Capacity | 100,000 identification records | |
| Intelligent Function | Time Segment Control | Support equipment time segment control, holiday constraint function |
| Remote Opening Door | Support remote control opening door | |
| Advertising Standby | Support advertising picture playback | |
| Remote Upgrade | Support by the client port | |
| Secondary Development | Supports LAN and WAN interconnection | |
| Network Function | Support Protocol | Support protocol RTSP, serial communication protocol, Wiegand protocol |
| Support Networking Mode | LAN wired communication | |
| WIFI Communication (optional) | ||
| 4G Communication (realize it via external USB module) (optional) | ||
| Storage | Local storage and off-network consecutive transmission | |
| Universal Functions | heartbeat, password protection,NTP time calibration | |
| Port | Power port | DC12V * 1 |
| USB Interface | USB2.0 * 1 | |
| Relay Output | Switching output * 1 | |
| RJ45 Network Cable Port | Ethernet port * 1 | |
| Wiegand Output Interface | Wiegand Output * 1 | |
| Alarm input | Alarm input * 2 | |
| Working Environment | Power Supply | DC12V 2A |
| Power Consumption | 15W | |
| Operating Temperature | -20℃～＋60℃ | |
| Working Humidity | 20%－90% | |
| Storage Temperature | -40~125℃ | |
| Waterproof Class | IP57 | |
| Working Environment | Available both indoor and outdoor |

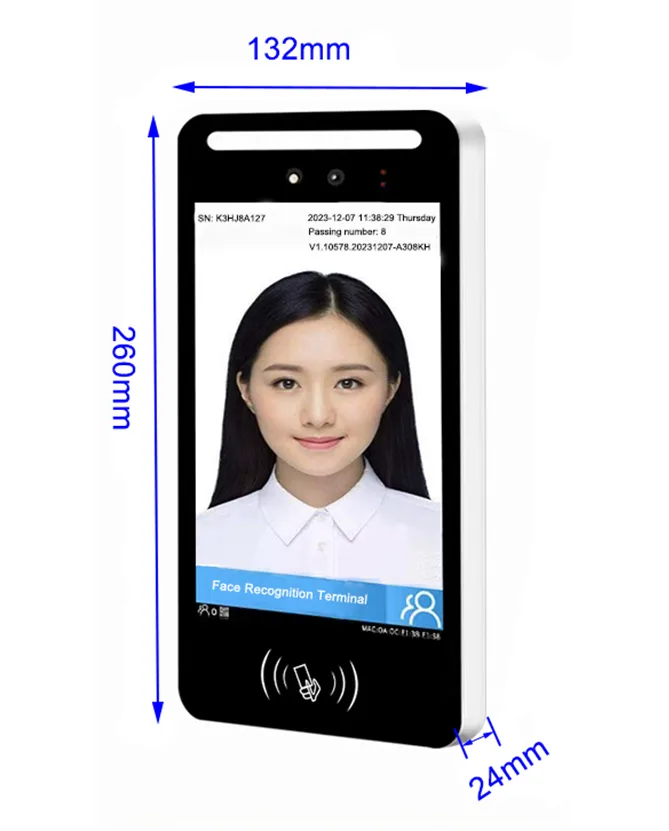

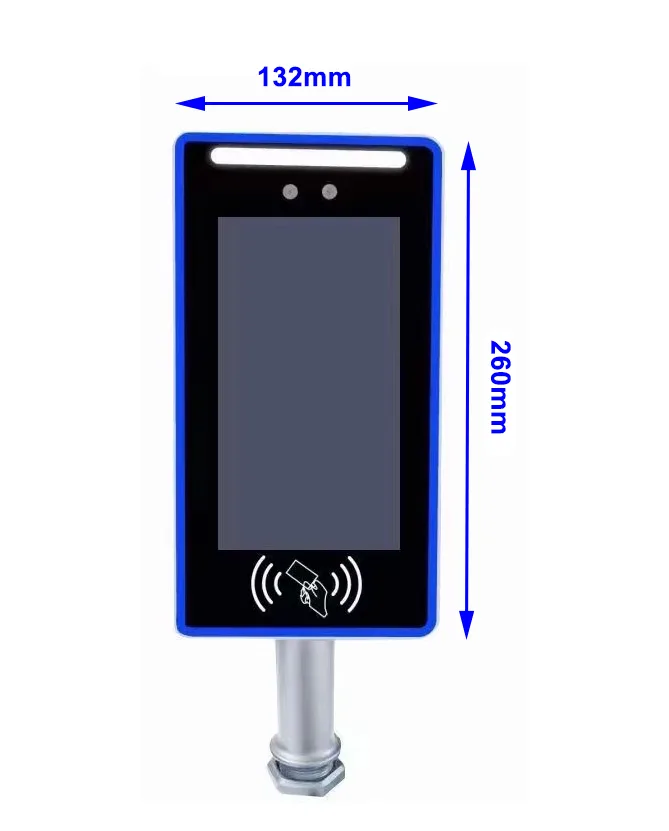

IV, Face Recognition Terminal Size Drawing
V, Packing List
Delivered products include:
Face Recognition reader, 12V power adapter, wall mount bracket, tail wire harness
VI, Matters need Attention for Installation & Use Face Recognition Reader
1, We’ll deliver a power adapter together with the equipment. Its total length is 1m, including 40cm weak current power cable, and 40cm strong current power cable.
2, If the power supply is far away from the device, customers can extend the strong current part of power cable.
3, Customers shouldn’t extend the weak current part of power cable for more than 3m. Otherwise, the power supply of the device will be insufficient, which will result in some abnormal phenomena to occur, such as repeated restart, crash, etc.
4, If customers use other power adapters, such as 9V, 1A, insufficient voltage or low current will cause the device to restart repeatedly.
5, During wiring, if the 12V power supply cable of the host does not use the “dedicated power extension cable” and the distance is longer. It will cause the equivalent resistance of the cable is too large, and the terminal voltage is insufficient (≤11V), the host restarts repeatedly, and the host crashes.
6, Do not use thin cables (for example, thin network cables). You are advised to connect multiple strands of the same cable in parallel or use cables with thicker copper cores to ensure that the voltage is greater than 11V.
7, If you do not know how to extend the cable, pls contact the us to replace the dedicated power extension cable.
8, If you need to use network cable, considering extension cable, pls use 4 strands of network cable as positive electrode, and 4 strands as negative electrode.
9, the device built-in relay device, the magnetic lock (or other access control unit) load maximum voltage can not exceed DC12V, the maximum current can not exceed 3A, or it will breakdown the relay, resulting in can not open the door.
10, If you choose a temperature measurement function, the temperature measurement is required to be carried out indoors under constant temperature conditions to avoid sunlight exposure.
11, Temperature measurement requires no high temperature sources around, such as car engines, ovens, lit cigarette butts, etc
12, when measuring the temperature, please do not have sth to cover your face, such as the hair to block the forehead, sweat, grease, etc., which will affect the accuracy of the temperature measurement results.
VII, Face Recognition Reader After-Sale Service
No worries for after-sale service. We support 1 year guarantee, and lifetime maintenance service.
If you have any questions, please feel free to contact us anytime.
Manufacturer Contact Way as below.
*Manufacturer: Keep Kind Heart Technology Co., Limited ( Website: keepkindheart.top )
*Address: Maoyuan Industry Park, Zhangkengjingxiawei, Guanlan Street, Longhua District, Shenzhen City, Guangdong province, China. (Post Code: 518110)
*Contact: Annie Zheng
*Email: info@keepkindheart.top
*Mobile | WhatsApp | Wechat | Skype: 0086 17388 7868 27
