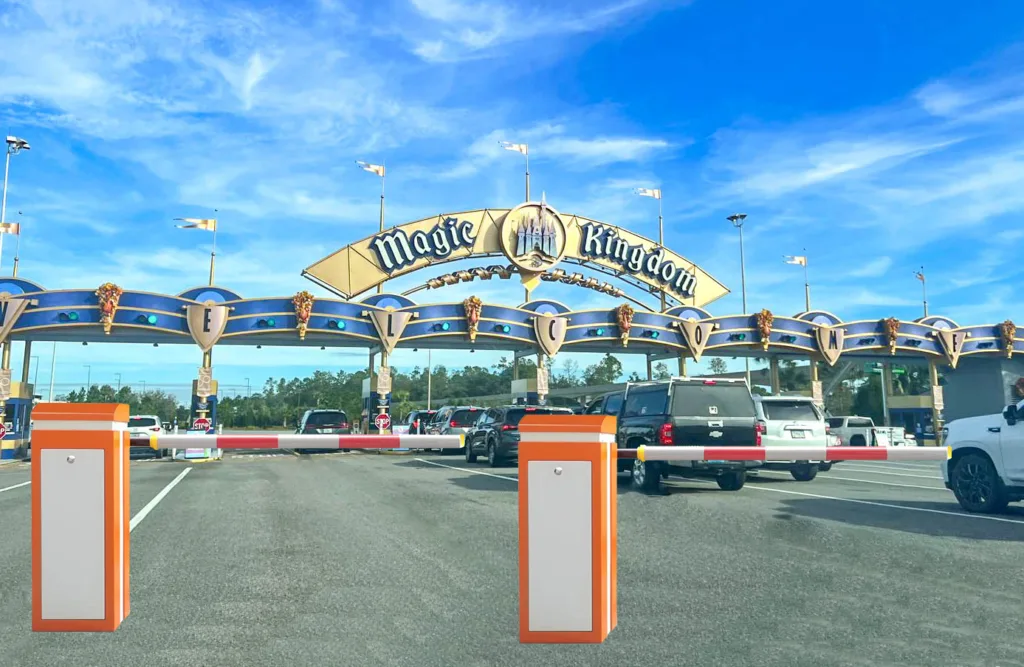

0.6S Parking Barrier Gate, KKH3017

0.6S Parking Barrier Gate, KKH3017

1- Cabinet Size: 350*300*980mm
2- Metal Plate Thickness: 2mm
3- Material Process: high-temperature electrostatic spraying plastics
4- Cabinet Color: black+white, blue+white, orange+white optional
5- Drive: 240W stepping motor (maximum power 300W)
6- Lifting Speed: 0.6-6s adjustable (0.6s for 3m carbon rod, 0.75s for 3.5m carbon rod.
7- Input Power: DC24V±10%, 50HZ
8- Operating Temperature: -20 ° C ~ +60 ° C
9- Production Time: 3-5 working days

I, What is a 0.6S Parking Barrier Gate?

A 0.6S Parking Barrier Gate is an entrance and exit access control management equipment, especially used for restricting vehicles from passing. Therefore, it can help effectively prevent illegal vehicles from entering and exiting.
Nowadays, many customers install it widely in highway toll stations, parking lots, entrances, and exits to manage vehicle access.

III, Main features

1, Diversified variety optional

There are various cases, different shapes, and colors for options. At the same time, They have an elegant appearance and make them look graceful, fashionable, atmospheric, and high-level.
Therefore, diverse appearances can meet different environments and places’ requests and interests. Lastly, Users can choose any match according to the scene color.

2, Anti-collision Car Function

The Parking Barrier Gate has advanced and matured intelligent anti-collision car functions.

KKH3038 Parking Barrier Gate, with anti-collision function
KKH3038 Parking Barrier Gate, with anti-collision function







*Anti-collision Ground Sensor

If the Barrier Gates receives a ground sense signal during the rod falls, it will automatically lift, and the rod will not fall during the trigger period. After the ground sense signal recovers, the rod will automatically fall.

What’s more, the Barrier Gate supports external and built-in ground sensor detection so that the rod can automatically fall after the car passes, and automatically rise if there’s a car under the rod during the fall.

*Rebound Anti-collision Car

The Barrier Gates are equipped with intelligent rebound anti-collision functions. If the rod meets an external force block in the process of falling, it will automatically rise to reduce the damage caused by mistakes. At the same time, it effectively ensures the safe passage of vehicles, giving pedestrians more peace of mind.

To make you better understand, here share with you a related demo video: https://www.youtube.com/watch?v=Kr8Zz8EtQxQ

3, Permanent 90° Operation is Safer
KKH3038 Parking Barrier Gate, with 90 degree range rotation
KKH3038 Parking Barrier Gate, with 90-degree range rotation













KKKH adopts a precise moment balance transmission mechanism, which ensures the rod is vertical after rising and horizontal after falling forever. Therefore, it can make the rod operate at the range of 90 degrees permanently.

At the same time, the special design eliminates accidents caused by the 360-degree operation and keeps an accurate balance, never interrupting.

Meantime, the lifting rod operation is strong and stable and can start slowly, operate fast in the middle process, and stop slowly.
Besides, it can reduce mechanical failure, with low noise, no pollution, and no need for maintenance.

4, 240W stepping motor (maximum power 300W)

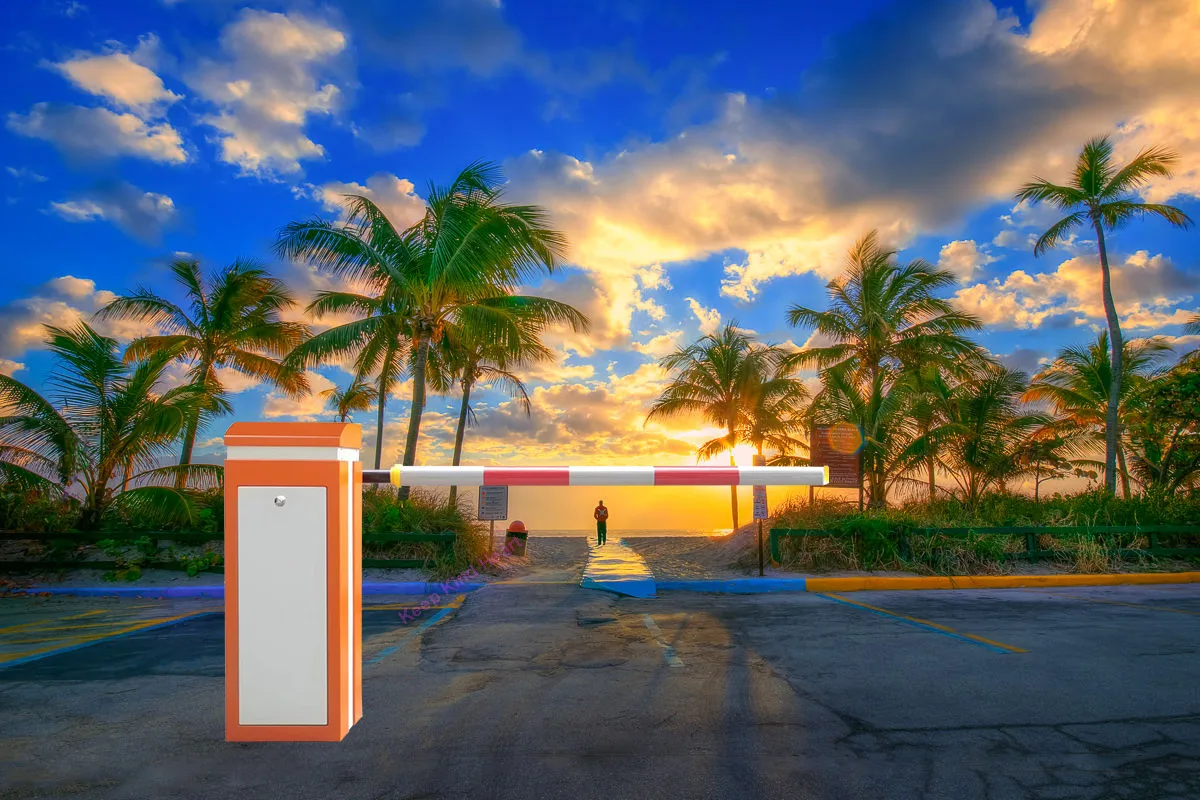

0.6S Parking Barrier Gate, KKH3017
0.6S Parking Barrier Gate, KKH3017













Good equipment needs a good heart. KKH3017 adopts a 240W stepping motor (maximum power 300W), with strong torsion power, and low running noise.

At the same time, it can effectively reduce the rod shake and make the rod run more smoothly.

5, Control Mode

Users can control the opening and closing in the below ways. Lastly, choose one or multiple control ways to operate according to actual use needs.
First, most customers choose wireless remote control to control the opening and closing. Secondly, there are also some customers to choose wired control with an economic cost. Thirdly, customers can open the gate by manual control wheel in the cabinet under power off. Lastly, the barrier gates support use together with a communication automatic control, such as a parking lot management system, an entrance control machine, etc.)

6, Left or Right Direction optional
KKH3003 Parking Barrier Gate
KKH3003 Parking Barrier Gate











Customers can fix the barrier gate on the left or right according to site needs before production.

7, Higher Integration + Multi-signal Input

The system uses a standard electrical interface and owns various interfaces, so users can easily connect it with other systems.

8, Nobody is on duty
parking lot gate system, Keeep Kind Heart
parking lot gate system







Parking Barrier Gates support integrating with a License Plate Recognition Machine. Therefore, it can help to realize automatic license plate recognition, intelligent lifting, non-sensory payment, and automatic release functions, and achieve unattended automatic management parking solutions.

IV, Demo Video

Demo Video
Boom Gate Demo Video





1, General Straight Rod: https://www.youtube.com/shorts/5pPzx3k_rPE

2, 90° Curved Straight Rod: https://www.youtube.com/shorts/FmXHAHhXo6U

3, General Fence Rod: https://www.youtube.com/watch?v=HcTMhdsq4FQ

4, 90° Curved Fence Rod: https://www.youtube.com/watch?v=xP0B_h4BwOk

5, Heavy Duty Fence Rod: https://www.youtube.com/watch?v=mPXWRvhbO5g

If you have any questions, you are welcome to contact us anytime by emailing info@keepkindheart.top
